Skills and Features

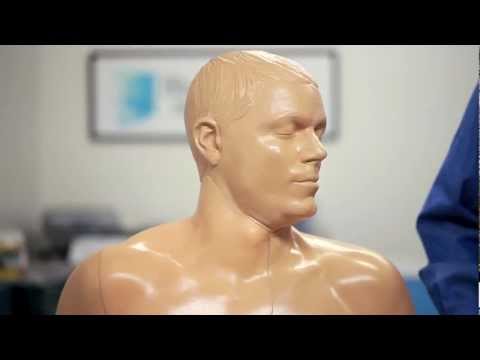

  • Blue Phantom GEN II Ultrasound Central Line and Regional Anaesthesia Training Model is excellent for training clinicians develop and practice the psychomotor skills and techniques associated with ultrasound guided or blind insertion central line and peripheral nerve blocks in regional anaesthesia procedural training
  • Model incorporates all the anatomy required to gain proficiency in using ultrasound for performing complete central line placements of the internal jugular and subclavian vein – including needles, guidewires, dilation, and threading of catheters
  • This ultrasound training model is constructed utilizing the innovative LifeCast™ modelling approach and uses Blue Phantom’s patented SimulexUS™ ultra-durable SimulexUS™ tissue producing extremely realistic ultrasound images. The materials used matches the acoustic characteristics of actual human tissue so the user experiences the same quality expected from imaging patients in the clinical environment. Uncompromising quality allows clinicians to utilize the model repeatedly minimizing the need for replacement parts
  • Each training model is designed to offer users, of all levels, superior realism, reliability and durability
  • Ultrasound imaging skills include: using ultrasound system controls, transducer positioning and movement, recognition of arterial and venous anatomy, using ultrasound to target the appropriate vessels for cannulation, and performing a central venous access procedure


  • The external landmarks were cast from a live human while the internal anatomy is based on digital human files
  • This adult male also includes internal landmarks such as the trachea, suprasternal notch, manubrium and clavicle
  • Anatomically correct brachial plexus and vascular access anatomy of the upper thorax and neck
  • The improved  anatomy for nerve blocks including the supraclavicular nerves, interscalene nerves, infraclavicular nerves and enhanced access of the posterior interscalene nerve block approach
  • Venous anatomy includes the internal jugular vein (IJ), brachiocephalic vein, subclavian vein and axillary vein
  • Arterial anatomy includes carotid artery, subclavian artery and axillary artery.
  • The model can be accessed via the internal jugular (IJ), subclavian, infraclavicular and supraclavicular approach as well as the axillary vein
  • The simulated superior vena cava, right atrium and right ventricle offer users the ability to fully thread guidewires, dilators and catheters without resistance as would be expected with a live patient
  • The brachial plexus can be injected with simulated anaesthetics to verify needle tip location and to practice the entire anaesthesia procedure
  • Injected simulated anaesthetics are expelled allowing for repeated use
  • Veins are compressible using mild pressure while the arteries remain uncompressed.
  • Arterial pulsation can be simulated to differentiate between arteries and veins
  • Two arterial pulse configurations are available: Integrated Automated Pump (ABP057) and Hand Pump (ABP058)
  • The hand pump can be manually compressed by a secondary user or instructor creating expansion and contraction of the arterial vessels.
  • Clinicians can visualize the pulsatility of the arteries via ultrasound for positive identification of the targeted vessel
  • Venous system is prefilled with blue fluid and the arterial system is prefilled with red fluid
  • Users can positively identify the targeted vessels and receive immediate feedback as to successful or unsuccessful vascular access. Venous and arterial fluid removed during central venous catheter procedures can be easily refilled by using the provided QuickFill™ ports or and I.V. bag to continually refill the vessels during training
  • Excellent imaging quality using any ultrasound system
  • Auto pump model utilizes low voltage universal power supply
  • Product dimensions:
    • W 55cm H 57cm D 23cm
    • Weight 12.7 kg
